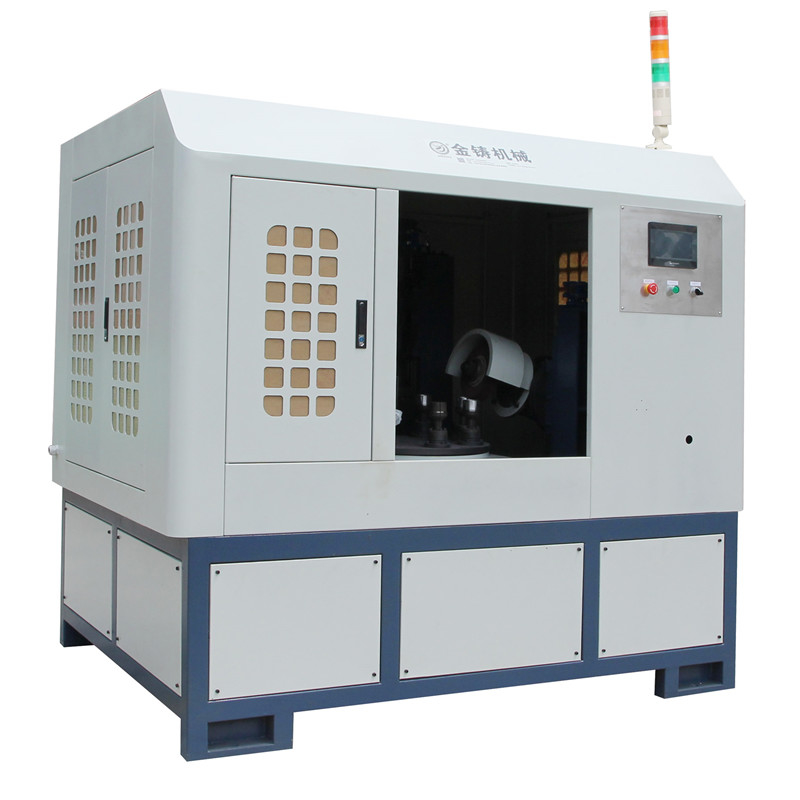

Rotary table polishing machine

Rotary table polishing machine
Rotary table polishing machine Rotary table polishing machine Rotary table polishing machine Rotary table polishing machine

Großes Bild :  Rotary table polishing machine

Produktdetails:
Herkunftsort: Guangdong, China
Markenname: JINZHU
Zahlung und Versand AGB:
Preis: $24,837.00/sets
Verpackung Informationen: Standardexportverpackung
Ausführliche Produkt-Beschreibung
Bedingung: Neu Einlass-Durchmesser: 5.5mm
Auslassdurchmesser: 1.6mm Videoabgehendinspektion: Zur Verfügung gestellt
Maschinerie-Prüfbericht: Nicht verfügbar Vermarktende Art: Gewöhnliches Produkt
Garantie von Kernkomponenten: 1-JÄHRIG Kern-Komponenten: Maschine, Motor, PLC
Spannung: 380, 380V-50hz Energie: 11.7
Maß (L*W*H): 2300*1200*1900mm Gewicht: 2
Garantie: 1-jährig Schlüsselverkaufsstellen: Einfach zu benützen
Anwendbare Industrien: Maschinerie-Reparaturwerkstätten, Werbefirma Ausstellungsraum-Standort: Kein
Produktname: Drahtziehenmaschine Zeichnendes Material: Stahlkupfer
Verwendung: Zeichnung Anwendung: Drahtziehenprozeß
Netzspannung: 3kw Gesamtleistung: 11.7kw
Drehscheibenabstandzeit: 5~20S Spindel-Geschwindigkeit: 3000
Luftpresse: 0.55mpa

Product Description
The automatic disc polishing machine is suitable for the surface sanding, grinding and polishing of pots, thermos cups, round lids, ball heads, hardware parts and other products. The machine has 2 grinding heads, 3 grinding heads, 4 grinding heads and other models, customers can choose according to actual needs, and the workpiece position can also be customized according to the output.
Voltage 380V-50hz Main Power 3kw Total power 8.32kw Turntable interval time 5~20S Spindle speed 3000r/min Waxing device Consumable specifications Φ250*50mm Consumables up and down stroke 120mm air press 0.55MPa Work position 8pcs Consumable swing range 0~40mm Installation size 2300*1200*1900mm L*W*H
Rotary table polishing machine 0

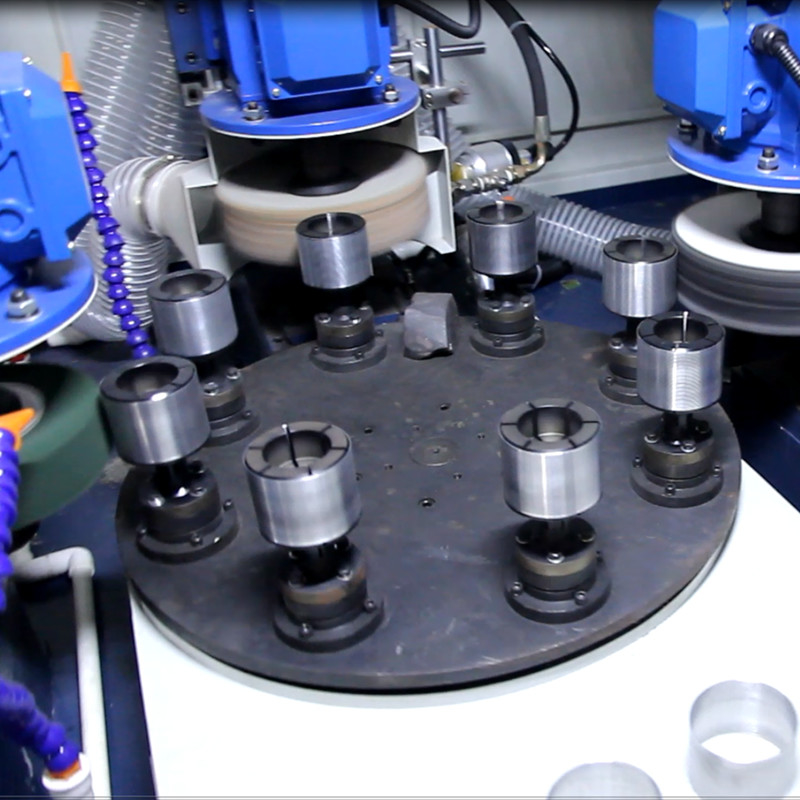

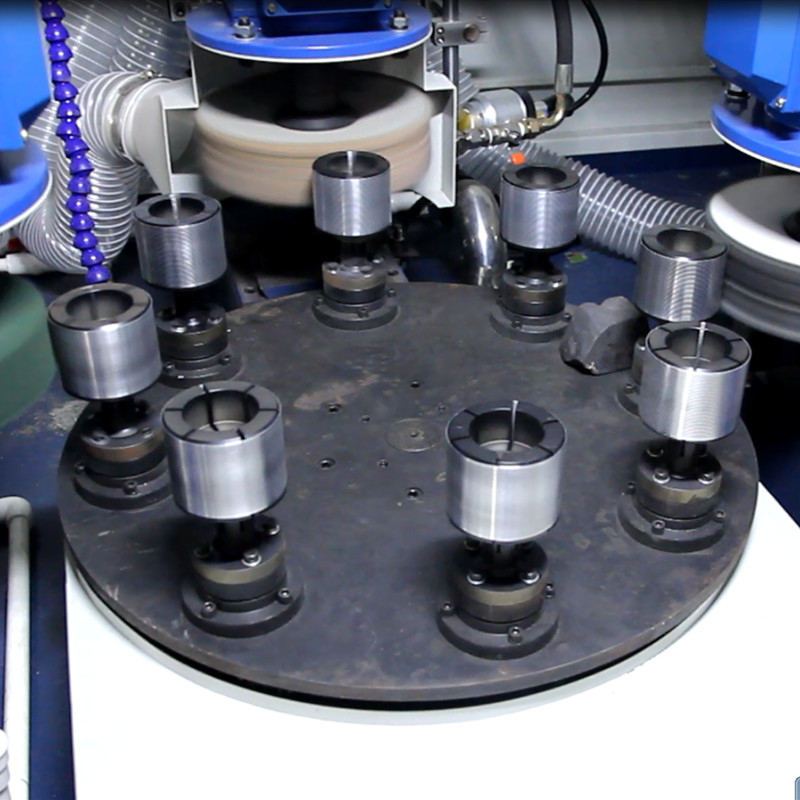

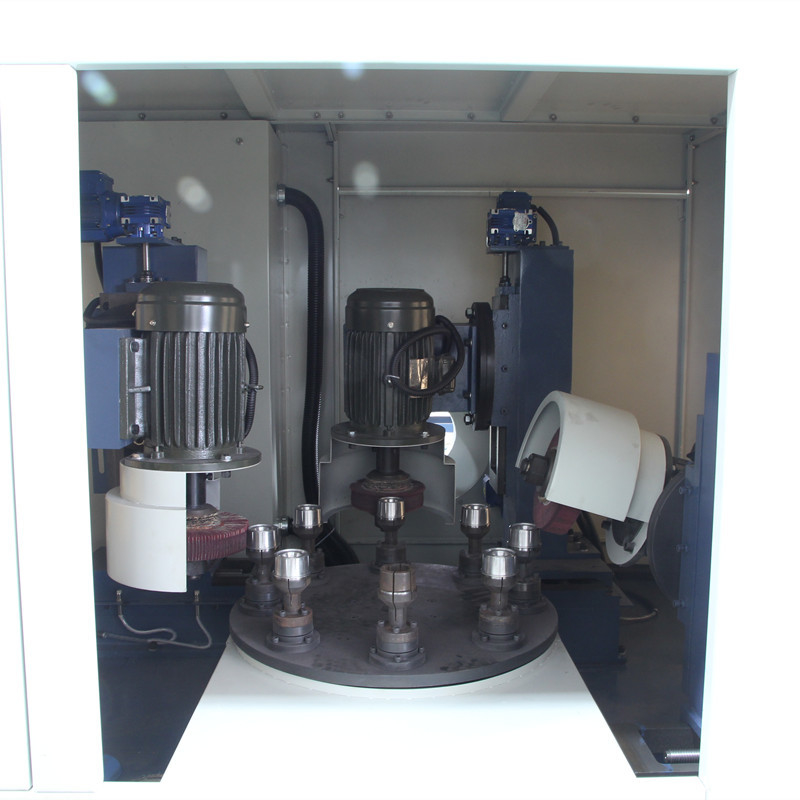

3 Grinding Head Metal Cylindrical Mirror Polishing Machine 1. Disc worktable: The whole worktable rotates at a constant speed, and the product is polished in a circular manner. 2. Fixture: It rotates at a constant speed during work, and it is customized according to the style of the processed product. 3. Bevel polishing of the upper part of the cylinder: The left polishing polishes the upper bevel of the product. (polishing angle can be adjusted) 4. Cylindrical surface polishing: The left polishing polishes the cylindrical surface of the product.
Specification
item
value
Condition
New
Inlet Diameter
5.5mm
Outlet Diameter
1.6mm
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Engine, Motor, PLC
Place of Origin
China
Guangdong
Brand Name
JINZHU
Voltage
380
Power
8.32
Dimension(L*W*H)
2300*1200*1900mm
Weight
2
Year
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Machinery Repair Shops, Advertising Company
Showroom Location
None
Product Name
Wire Drawing Machine
Drawing material
Steel Copper
Usage
Drawing
Application
Wire Drawing Process
Voltage
380V-50hz
Main Power
3kw
Total power
8.32kw
Turntable interval time
5~20S
Spindle speed
3000
air press
0.55MPa
Packing & Delivery
Rotary table polishing machine 1
Company Profile
Rotary table polishing machine 2
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(24.00%),Mid East(23.00%),Domestic Market(20.00%),South Asia(15.00%),South America(7.00%),North America(5.00%),Eastern Europe(2.00%),Eastern Asia(1.40%),Central America(0.80%),Oceania(0.50%),Western Europe(0.50%),Northern Europe(0.30%),Africa(0.30%),Southern Europe(0.20%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
OEM & ODM,Finishing Machinessing,Polishing Machine,Deburring Machine,Buffing Machine

4. why should you buy from us not from other suppliers?
A top brand in China, since 2006. A wide range production line, with Specialized to be engaged in various types metal surface treatment machinery. A strong capacity & capability on delivery.Custiomization & Personalization are acceptable as per request.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
